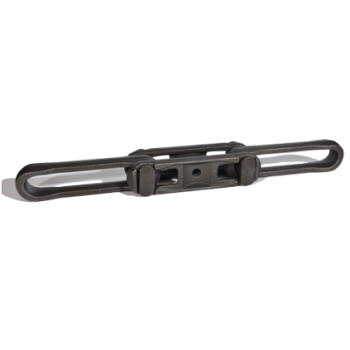

X678 Forged Rivetless Chain | I Beam Conveyor Chain
- group name
- Drop Forged Rivetless Chain
- Min Order
- 100 meter
- brand name
- CamelConvey Conveyor Chain Manufacturer
- model
- X678 Chain
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 06 Dec 2025 01:18:32 GMT
Paramtents
Material SAE5140 /SAE4140/SAE8642
Heat Treatment Through Hardening
Surface Treatment Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
Sample Available
Packging & Delivery
-
Min Order100 meter
Briefing
CamelConvey X678 Chain is designed to withstand heavy-duty operation and high-stress environment in overhead conveyor systems.
Detailed
X678 Forged Rivetless Chain | I Beam Conveyor Chain Description：
The X678 Drop Forged Rivetless Chain is specially designed to withstand heavy-duty operations and high-stress environments typical in overhead chain conveyor systems. Manufactured using advanced forging techniques, this chain is free from rivets, enhancing its flexibility and strength. It is particularly suited for I Beam Conveyor Chains due to its reliable performance and long-lasting durability. An I Beam Conveyor Chain system is a proven solution for handling heavy loads and facilitating complex transport routes in industrial settings. Paired with an X678 chain for i beam overhead conveyor, these systems become highly efficient, enabling seamless operations across assembly lines, processing plants, and storage facilities.
Overhead conveyor parts often include drive units, trolleys, track systems, and support structures. The X678 Forged Rivetless Chain plays a pivotal role by connecting these components to create a unified system capable of moving products along intricate paths with minimal human intervention.
X678 Forged Rivetless Chain | I Beam Conveyor Chain Schematic Diagram：
X-Type
Regular-Type
S-Type
X678 Forged Rivetless Chain | I Beam Conveyor Chain Specification:
Chain NO. | Normal Pitch | Actual Pitch | Pin Diameter | Pin Length | Other Dimensions | Ultimate Tensile Strength | |||
P | D | L | A | B | C | E | Q | ||
X678 | 6" | 6.03" | 0.874" | 3.03" | 2" | 0.83" | 1.26" | 0.98" | 85500lbs |
152.4mm | 153.2mm | 22.2mm | 77mm | 50.8mm | 21mm | 32mm | 25mm | 380KN | |
