Drop Forged Link Chain Flight

group name: Drop Forged Chain

Min Order: 100 meter

brand name: CamelConvey Conveyor Chain Manufacturer

model: Drop Forged Link Chain Flight

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, CIP, DDP, Express Delivery

Acceptable payment methods: T/T, L/C

update time: Sat, 06 Dec 2025 08:50:31 GMT

contact supplier

Paramtents

Material 40Cr/5140/41Cr4
Heat Treatment Through Hardening
Surface Treatment Natural
Sample Available

Packging & Delivery

Min Order100 meter

Briefing

CamelConvey drop forged link chain flight plays an integral role in industries such as agriculture, mining and manufacturing.

Detailed

Drop Forged Link Chain Flight Description：

The Comprehensive Guide to Drop Forged Link Chain Flights

When it comes to material handling and conveyor systems, choosing the right components is crucial for the efficiency and longevity of operations. Among these components, the drop forged link chain flight plays an integral role in industries such as agriculture, mining, and manufacturing. In this guide, we will discuss what drop forged link chain flights are, their applications, and why selecting the right manufacturer matters.

Applications of Drop Forged Link Chain Flights

These chain flights are commonly utilized in various sectors where conveying materials efficiently is essential. Here are some typical applications:

● Mining Operations: Used in heavy-duty drag conveyor chains to move extracted materials from mining sites to processing plants.

● Agriculture: Ideal for grain handling and other agricultural processes, where consistent movement of bulk materials is critical.

● Industrial Manufacturing: Often employed in complex production lines to transport raw and processed materials seamlessly.

Types of Drop Forged Conveyor Chains

Understanding the types of chains available will help you make informed decisions when selecting the right component for your operation:

● Submerged scraper chain conveyor: Used for horizontal or inclined transport of bulk materials, ensuring minimal material loss during transit.

● Cheap scraper conveyor chains: Features flights attached to move bulk materials efficiently through an enclosed conveyor system, ideal for industries like mining and cement production.

P200 Chain with Flight – A Versatile Solution

The P200 chain with flight is an excellent example of a versatile conveyor chain used in multiple industries. This type of chain is designed to handle significant loads while maintaining smooth operation. The integration of high-quality flights ensures that materials are moved uniformly, reducing the risk of jams or uneven distribution.

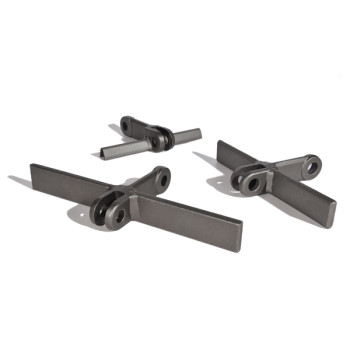

Drop Forged Link Chain Flight Pictures：

Drop Forged Link Chain Flight Schematic Diagram：

BAR - Flight

T - Flight

U - Flight

OO - Flight

Drop Forged Link Chain Flight Specification:

Chain NO.	Pitch	Pin Diameter	Other Dimensions					Ultimate Tensile Strength
	Pitch	Pin Diameter	Other Dimensions					Ultimate Tensile Strength
	P	D	C	T	F	R	S	Q （20MnCr5）	Q (42CrMo4)
10160	4"	0.55"	1.42”	0.94"	0.39"	0.235"	0.35”	24700lbs	47200lbs
10160	101.6mm	14mm	36mm	24mm	10mm	6mm	9mm	110KN	210KN
10160R	4"	0.55"	1.42"	1.18"	0.53"	0.315"	0.51"	40500lbs	74200lbs
10160R	101.6mm	14mm	36mm	30mm	13.5mm	8mm	13mm	180KN	330KN
12514	4.92"	0.63"	1.42"	1.18"	0.63"	0.39"	0.59"	36600lbs	65200lbs
12514	125mm	16mm	36mm	30mm	16mm	10mm	15mm	163KN	290KN
14218	5.59"	0.98"	1.97"	1.65"	0.81"	0.47"	0.75"	65200lbs	123700lbs
14218	142mm	25mm	50mm	42mm	20.5mm	12mm	19mm	290KN	550KN
14226	5.59"	0.98"	1.97"	2.44"	1.18"	0.63"	1.12"	99000lbs	177700lbs
14226	142mm	25mm	50mm	62mm	30mm	16mm	28.5mm	440KN	790KN
16025	6.30"	0.98"	1.97"	1.97"	1.63"	0.55"	0.98"	83200lbs	147300lbs
16025	160mm	25mm	50mm	50mm	27mm	14mm	25mm	370KN	655KN
20028	7.87"	1.18"	2.36"	2.60"	1.22"	0.79"	1.18"	112500lbs	202500lbs
20028	200mm	30mm	60mm	66mm	31mm	20mm	30mm	500KN	900KN

The dimensions of flight according to the customer's requirement.

And custom flights are also available.

Drop Forged Link Chain Flight Overview:

CamelConvey – Your Go-To Conveyor Chain Supplier

CamelConvey drop forged link chain flight is a specialized component designed to move heavy materials effectively within a conveyor system. This type of chain combines durability and strength with high resistance to wear, making it a preferred choice in demanding environments. These chains are commonly used in drag conveyor chains and scraper conveyor chains, ensuring materials are transported smoothly over long distances with minimal interruption.

When searching for a reliable conveyor chain supplier, Camelconvey stands out due to their commitment to excellence and tailored solutions. With years of experience and a strong reputation in the industry, they provide a wide range of products, including drop forged link chain flights, drag conveyor chains, and scraper chain conveyor. Camelconvey ensures that their components meet stringent quality standards, providing clients with durable, efficient, and cost-effective solutions.

Discover the CamelConvey Advantage

If you're looking for top-tier drop forged chain manufacturers, consider CamelConvey for your next project. With expertise in producing high-performance P200 chains with flights and other customized conveyor solutions, CamelConvey is your trusted partner for enhancing your operational efficiency. Reach out today to learn more about how their industry-leading conveyor chains can meet your needs and improve your material handling processes.
