X348 Forged Side Link Pusher Dog | Power and Free Conveyor Components
- group name
- Power and Free Conveyor Components
- Min Order
- 100 meter
- brand name
- CamelConvey Conveyor Chain Manufacturer
- model
- X348 Pusher Dog
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 06 Dec 2025 01:18:33 GMT
Paramtents
Material Alloy Steel
Sample Available
Packging & Delivery
-
Min Order100 meter
Briefing
CamelConvey pusher dog is one kinds of overhead conveyor parts, we can provide X348,X458 and X678 Side Link Pusher Dog.
Detailed
X348 Forged Side Link Pusher Dog | Power and Free Conveyor Components Description：
CamelConvey pusher dog is one kinds of overhead coneyor parts, and we can provide X348 Side Link Pusher Dog, X458 Side Pusher Dog and X678 Side Link Pusher Dog. Pusher dogs engage retractable dogs on free line trolleys to push the trolley through the power portions of Power & Free conveyors. Pusher dogs are assembled to Rivetless chain in place of lower side links at specified intervals between power trolleys.Pusher Dog is composed of a connecting bar with moveable flipper lugs and two attachment pendants. Connecting bar is attached to the conveyor chain with the pendants, nuts, and cotter pins. Furnished in a zinc plate finish.
Pusher dogs are hardened and tempered steel forgings. Pusher dogs are usually furnished assembled to the overhead conveyor parts.

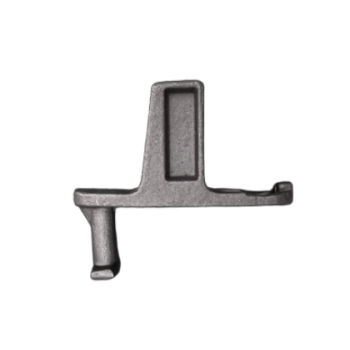

X348 Forged Side Link Pusher Dog | Power and Free Conveyor Components Pictures：
X348 Forged Side Link Pusher Dog | Power and Free Conveyor Components Schematic Diagram：
X348 Forged Side Link Pusher Dog | Power and Free Conveyor Components Specification:
Chain No. | Nominal Pitch | Actual Pitch | Pin Diameter | Pin Length | Other Dimensions | |||
P | D | L | A | B | C | E | ||
X348 | 3'' | 3.02'' | 0.5'' | 1.81'' | 1.1'' | 1'' | 2.36'' | 1.54'' |
76.2mm | 76.6mm | 12.7mm | 46mm | 28mm | 25.4mm | 60mm | 39mm | |
