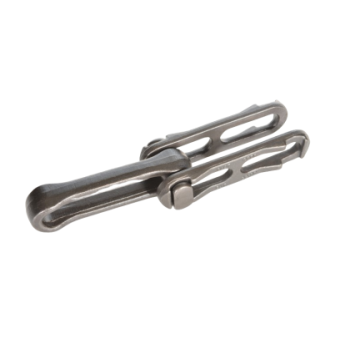

CC100 Metric Chain | Drop Forged Rivetless Chain
- group name
- Drop Forged Rivetless Chain
- Min Order
- 100 meter
- brand name
- CamelConvey Conveyor Chain Manufacturer
- model
- CC100 Chain
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Fri, 05 Dec 2025 23:14:38 GMT
Paramtents
Material SAE5140 /SAE4140/SAE8642
Heat Treatment Through Hardening
Surface Treatment Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
Sample Available
Packging & Delivery
-
Min Order100 meter
Briefing
CC100 Forged Chain is built to handle rigorous conditions, making it suitable for industries such as automotive manufacturing.
Detailed
CC100 Metric Chain | Drop Forged Rivetless Chain Description：
The CC100 Forged Chain is a high-strength, durable chain designed specifically for demanding industrial applications, particularly in overhead and inverted conveyor systems. Its forged construction provides exceptional toughness and reliability, making it ideal for use in environments where heavy loads and continuous operation are common.It is one kinds of drop forged chains and the chain pitch is 100mm.
CC100 Metric Chain | Drop Forged Rivetless Chain Schematic Diagram：
CC100 Metric Chain | Drop Forged Rivetless Chain Specification:
Chain No. | Pitch | Pin Diameter | Pin Length | Other Dimensions | Ultimate Tensile Strength | Type | |||
P | D | L | A | B | C | E | Q | ||
CC100 | 3.94" | 0.625” | 2.24" | 1.42" | 0.63" | 0.98” | 0.69" | 47250 lbs | Regular |
100mm | 15.88mm | 57mm | 36mm | 16mm | 25mm | 17.5mm | 210 KN | ||
