160 Metric Forged Chain | Material Handling Line
- group name
- Drop Forged Rivetless Chain
- Min Order
- 100 meter
- brand name
- CamelConvey Conveyor Chain Manufacturer
- model
- 160 Chain
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Fri, 05 Dec 2025 23:14:41 GMT
Paramtents
Material SAE5140 /SAE4140/SAE8642
Heat Treatment Through Hardening
Surface Treatment Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
Sample Available
Packging & Delivery
-
Min Order100 meter
Briefing
CamelConvey 160 Metric Forged Chain is a mechanical transmission product that is used in a variety of applications.
Detailed
160 Metric Forged Chain | Material Handling Line Description：
The 160 Dropped Forged Chain is commonly used in conveyor systems, material handling equipment, and other heavy-duty applications. The drop forged chain is capable of withstanding high loads and is designed to operate in harsh environments.These I beam conveyor chains are capable of carrying significant weight, making it perfect for moving large or bulky materials through a conveyor system.Made from high-quality materials, the XT100 chain is resistant to wear, corrosion, and impact, ensuring it remains reliable even in harsh environments.

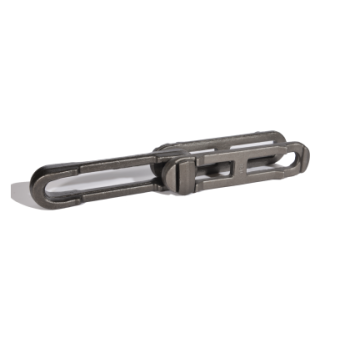

160 Metric Forged Chain | Material Handling Line Pictures：
160 Metric Forged Chain | Material Handling Line Schematic Diagram：
160 Metric Forged Chain | Material Handling Line Specification:
Chain No. | Pitch | Pin Diameter | Pin Length | Other Dimensions | Ultimate Tensile Strength | Type | |||
P | D | L | A | B | C | E | Q | ||
160 | 6.3" | 0.874” | 3.03" | 2" | 0.82" | 1.28” | 1" | 85500 lbs | Regular |
160mm | 15.88mm | 77mm | 50.8mm | 20.8mm | 32.5mm | 25.4mm | 380 KN | ||
