700 Class Sugar Mill Pintle Chain
- group name
- Sugar Mill Chain
- Min Order
- 100 meter
- brand name
- CamelConvey Conveyor Chain Manufacturer
- model
- 700 Class
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 06 Dec 2025 01:18:25 GMT
Paramtents
Material 40Cr
Heat Treatment Through Hardening
Surface Treatment Natural
Sample Available
Packging & Delivery
-
Min Order100 meter
Briefing
700 Class pintle chains are primarily used in clarifiers, bar screens, DAF, API, and other conveying applications.
Detailed
Premium 700 Class Chain and 700 Class Sugar Mill Pintle Chain
The 720S Chain is crafted with a full cast link and hardened carbon-steel pins, ensuring ultimate strength while maintaining a lightweight structure. It features an impressive average ultimate strength of 40,000 LBS. Designed for wastewater and conveying applications, this chain is ideal for industries that demand reliability and durability, such as sugar mills and sewage plants. One standout feature of the 720S Chain is its T-Head pins, which prevent pin rotation and block dirt or grit from entering the chain's core. As a conveyor chain, it travels in one direction (aligned with the barrel ends), ensuring smooth operation.
For added flexibility, the 720S Chain offers a variety of attachments, including A2, A53, AM116, F2, F226, F228, K2, and M1. Custom attachments are also available upon request, with quick assembly for tailored configurations. This chain has become a top choice among conveyor chain suppliers for its strength, adaptability, and performance in challenging environments.
In addition to 720S Chain, we offer an extensive selection of sprockets, flights, wear materials, and drive systems. Renowned conveyor chain manufacturers provide solutions backed by competitive pricing, large inventory, and fast customer service.
730 Sugar Mill Pintle Chain
The 730 Sugar Mill Pintle Chain is designed for maximum strength at minimal weight, making it a perfect fit for sugar mills, sewage plants, and other applications involving elevating and conveying. This pintle chain features sidebars with casted lugs to ensure proper fitting and stability during operation.
The T-head pins in the 730 Pintle Chain are precision-engineered to eliminate rotation and prevent debris from entering the chain. This closed bearing construction protects against pitch elongation caused by abrasive wear. Available in riveted or cottered construction, the chain is well-suited for both standard and custom requirements.
For added functionality, this conveyor chain offers attachments conforming to industry standards, such as "F" style attachments with large face plates for secure mounting. These features enhance the chain's versatility for elevating, driving, and conveying applications. The chain operates seamlessly on Chain Saver Hunting Tooth Sprockets, ensuring long life and smooth operation.

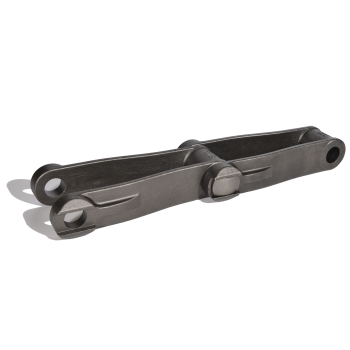

700 Class Sugar Mill Pintle Chain Pictures：
700 Class Sugar Mill Pintle Chain Schematic Diagram：
700 Class Sugar Mill Pintle Chain Dimensions:
Chain NO. | Pitch | Dimensions | Average U.T.S | |||
P | A | B | D1 | D2 | ||
720S | 6" | 1.56" | 1.13" | 0.75” | 1.44" | 30000 lbs |
152.4mm | 39.6mm | 28.7mm | 19.05mm | 36.6mm | 133 KN | |
730 | 6" | 1.75" | 1.13" | 0.75" | 1.5" | 30000 lbs |
152.4mm | 44.45mm | 28.7mm | 19.05mm | 38.1mm | 133 KN | |
Customer dimensions are also available.
